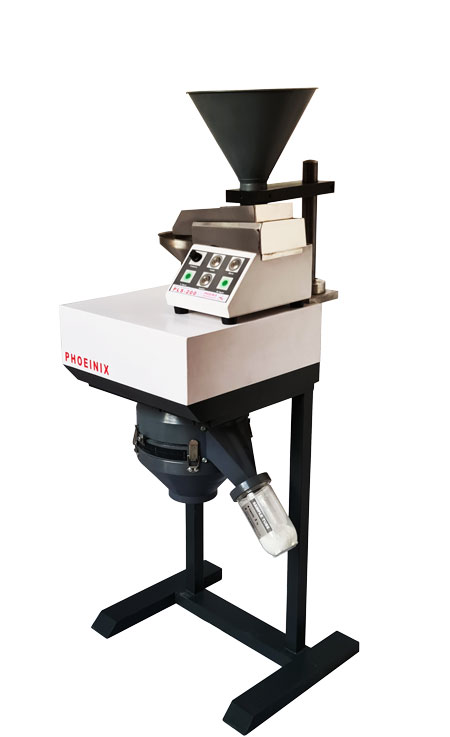

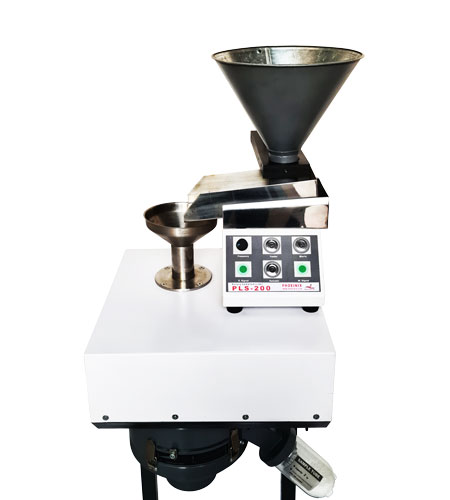

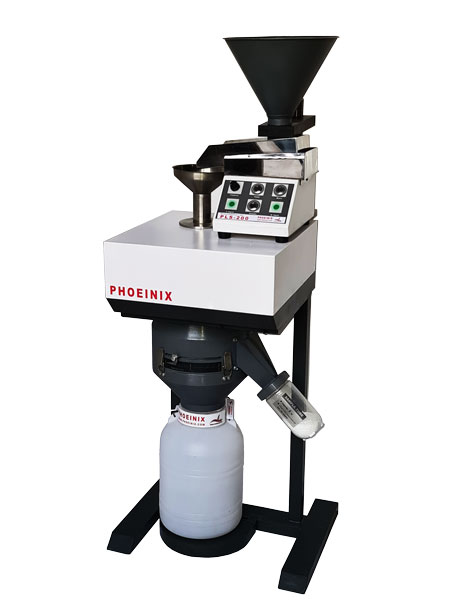

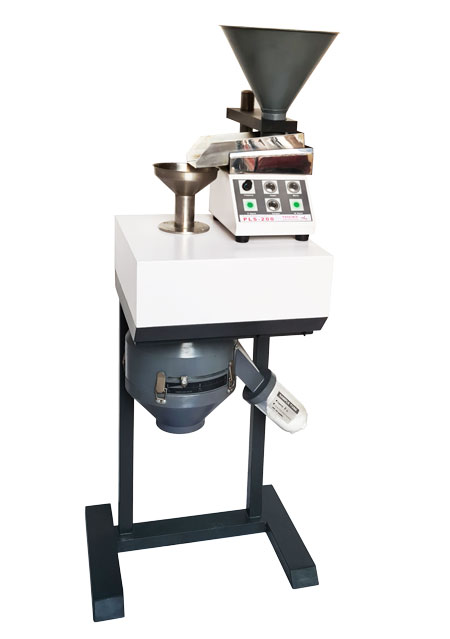

Automatic Rotary sample divider /sampler

MODEL :    PLS – 200

status: in stock



specification header
About the device







Automatic Rotary sample divider /sampler
MODEL:   PLS - 200













Description:

PLS - 200 designed  to obtain a representative sample of a larger bulk initial materials  of product line or any bulk materials.


The feed can be powder  or granular or mix of both. The slot width of sampler is adjustable.



Application:

Iron Ore , mining products, chemicals, metals powder , cement  , soil , seeds , flour , drugs and .....





Automatic Rotary sample divider /sampler
MODEL:   PLS - 200













Automatic Rotary sample divider /sampler
MODEL:   PLS - 200






















Automatic Rotary sample divider /sampler
MODEL:   PLS - 200
Automatic Rotary sample divider /sampler
MODEL:   PLS - 200
Technical Specifications

Technical Data: Rotary Sample Divider   Model: PLS-200

 220 V ,   50 Hz  ,  250  Watt

110 V   ,   60 Hz ,   250 Watt

Voltage

1: 15 - 1:5 adjustable

Division Ratio

500 g , 1 Kg

Sample Tube Capacity

30 Liter

Reject Container

Automatic Vibratory Feeder

Feeder

Anti-Oxidant industrial Stainless Steel

Feeder / Chambers main divide parts

Adjustable / Automatic Dust Free

Feeder System

Powed , grain

Powed / grain mix

40 µm - 12 mm Dia

Feed Material Size

Proportional Rotary Divider

Dust Free / Auto Cleaning

Divider System
